DNA Storage via Redundant Homologous Sequences

🏆 7th out of 190 teams in the national DNA storage competition  ·  📰 Read news coverage

1. Project Overview

This project addresses the core challenge in DNA-based data storage: faithful recovery of original information from error-prone DNA sequences introduced during synthesis, amplification, and sequencing. We propose a novel decoding pipeline that leverages homologous sequence redundancy, unsupervised clustering, and a sliding-window voting algorithm to reconstruct error-free sequences without relying on explicit error-correcting codes embedded in the encoding stage.

Our approach is encoding-agnostic, computationally efficient, and achieved 100% reconstruction accuracy on the competition’s 15× redundancy benchmark, ranked 7th out of 190 teams.

2. Problem Formulation

The DNA storage pipeline consists of two phases:

Key observation: Errors are sparsely distributed across individual copies. When the same sequence is replicated multiple times (homologous sequences), error positions are unlikely to coincide across copies. This redundancy enables consensus-based reconstruction without prior error models.

3. Encoding Strategy

We adopt a two-stage encoding pipeline:

Image preprocessing: Compression and downsampling (format-adaptive) to reduce bitstream length while preserving perceptual quality.

Fountain-code-based mapping: Each 20-bit block encodes positional information; 208-bit blocks carry payload data. The encoded DNA sequence length is fixed at 130 nucleotides per block.

The encoding produces N identical copies of each DNA sequence—these constitute the homologous sequence family delivered for synthesis. Reference implementation adapted from Chamaeleo.

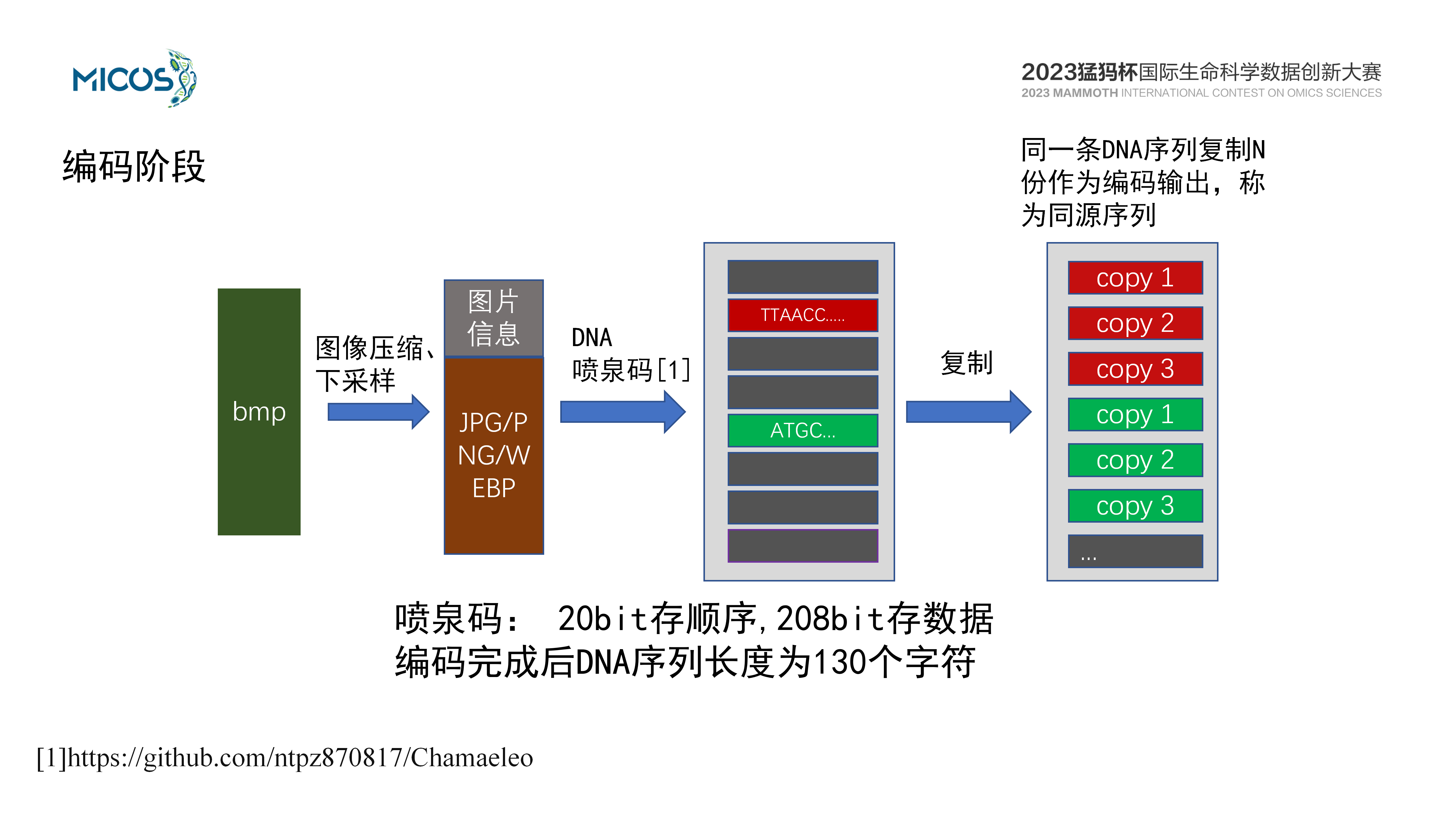

Figure 1: Encoding workflow. Image bitstreams are partitioned into 20-bit position blocks and 208-bit payload blocks, then mapped to 130-nt DNA sequences via fountain codes.

4. Decoding Pipeline

The decoding phase is the core contribution of this work. It comprises three sequential modules.

4.1 Sequence Vectorization

Each DNA sequence (length L = 120) is transformed into a 132-dimensional feature vector: 64-dim for frequency of all 3-mer combinations (4³ = 64), and 68-dim for per-position nucleotide counts over sliding windows of length 7 (⌊120/7⌋ × 4 = 68). This hybrid representation captures both compositional and positional information.

4.2 Multi-Level Clustering

We employ a two-stage clustering strategy to group homologous sequences: DBSCAN with k-nearest-neighbor distance as adaptive density threshold, followed by K-means refinement on the resulting clusters. Outlier sequences (with abnormally low local density) are iteratively removed and re-clustered, ensuring that only true homologs are retained for reconstruction.

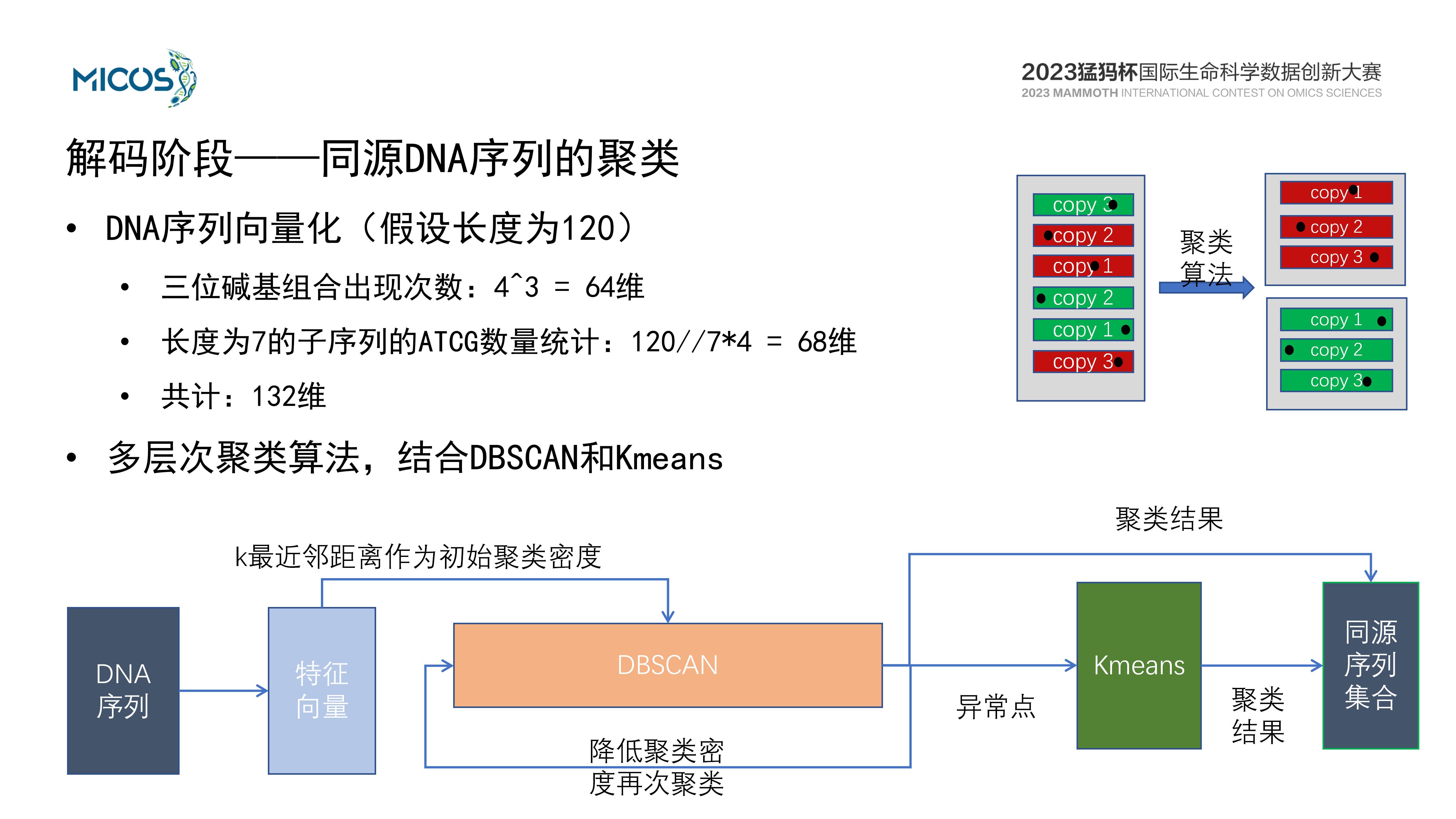

Figure 2: Multi-level clustering pipeline. DNA sequences are vectorized into 132-dim features, clustered via DBSCAN with adaptive density threshold, then refined by K-means. Outliers are iteratively removed.

4.3 Sliding-Window Voting Reconstruction

This is the algorithmic centerpiece of our decoder. It operates on aligned clusters and reconstructs the consensus sequence through recursive local voting.

Core Assumptions: Errors at the same position across multiple homologs are rare. Within any 4-base window, at most one error occurs in the majority of copies.

Figure 3: Core sliding-window voting mechanism. A 3-base window scans aligned homologous sequences; the most frequent pattern determines the consensus base at each position.

Voting Mechanism: A sliding window of length 3 (stride = 1) scans the aligned sequences. The most frequent 3-base pattern is identified as the consensus fragment. The middle base of that window is voted and fixed. The window then shifts right by 1 (standard case) or by 2 (when encountering homopolymer runs, e.g., AAA).

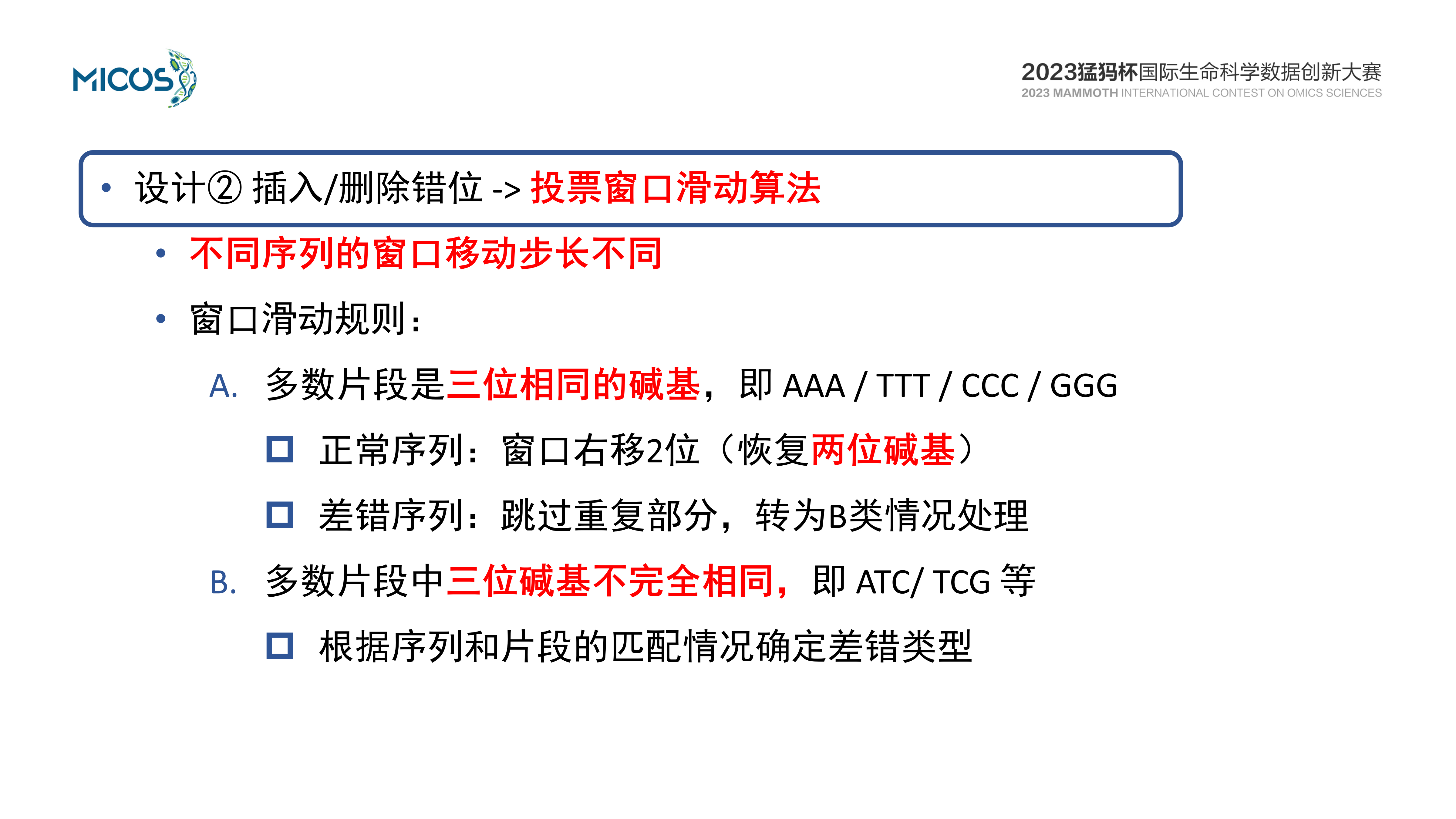

Handling Insertions/Deletions (Indels): Indels cause misalignment, breaking simple positional voting. Our algorithm dynamically adjusts stride per sequence based on local consensus.

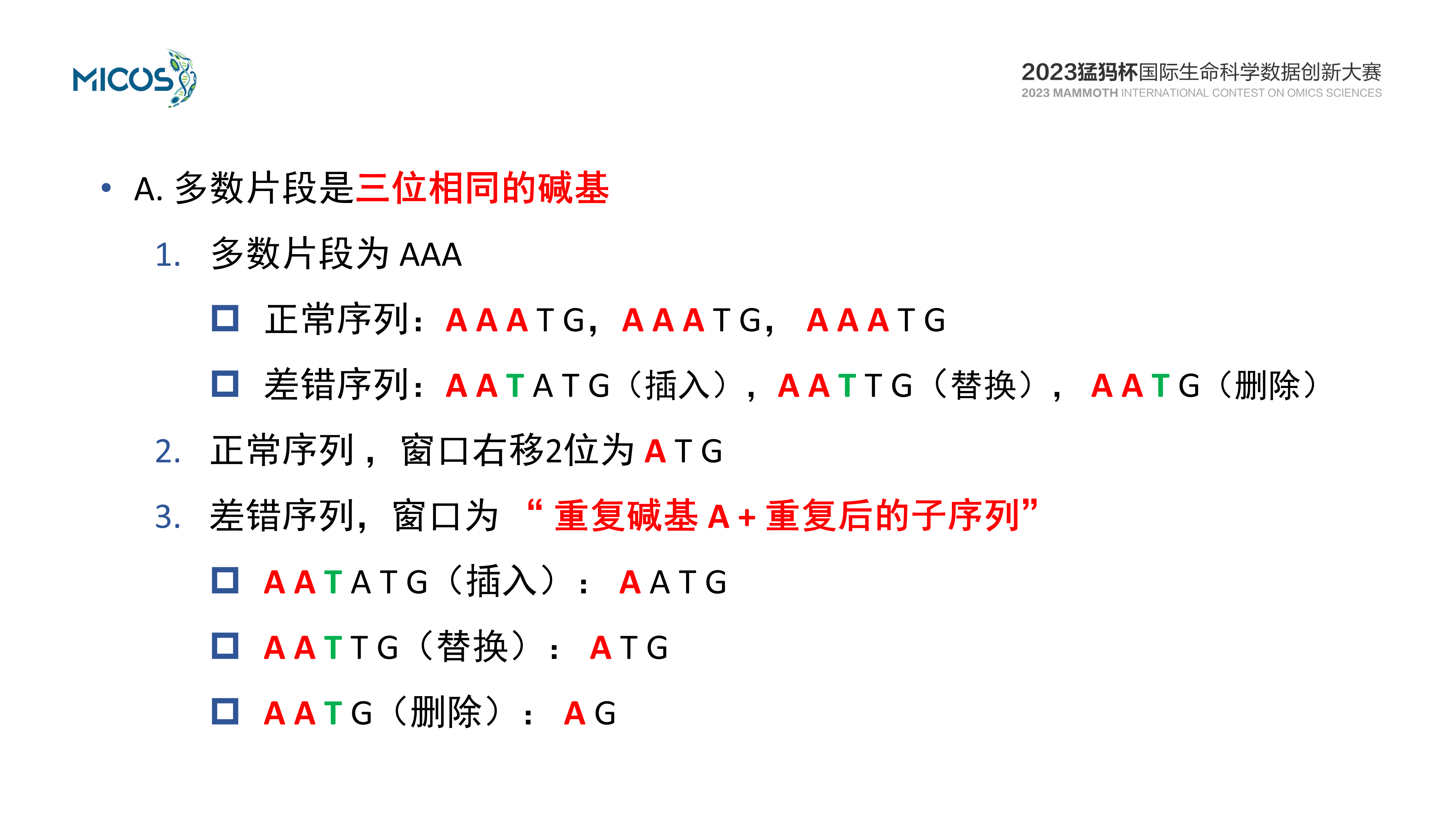

Figure 4a: Indel handling — Case A (homopolymer). Normal sequences shift by 2; erroneous sequences skip the repeated base and fall back to Case B.

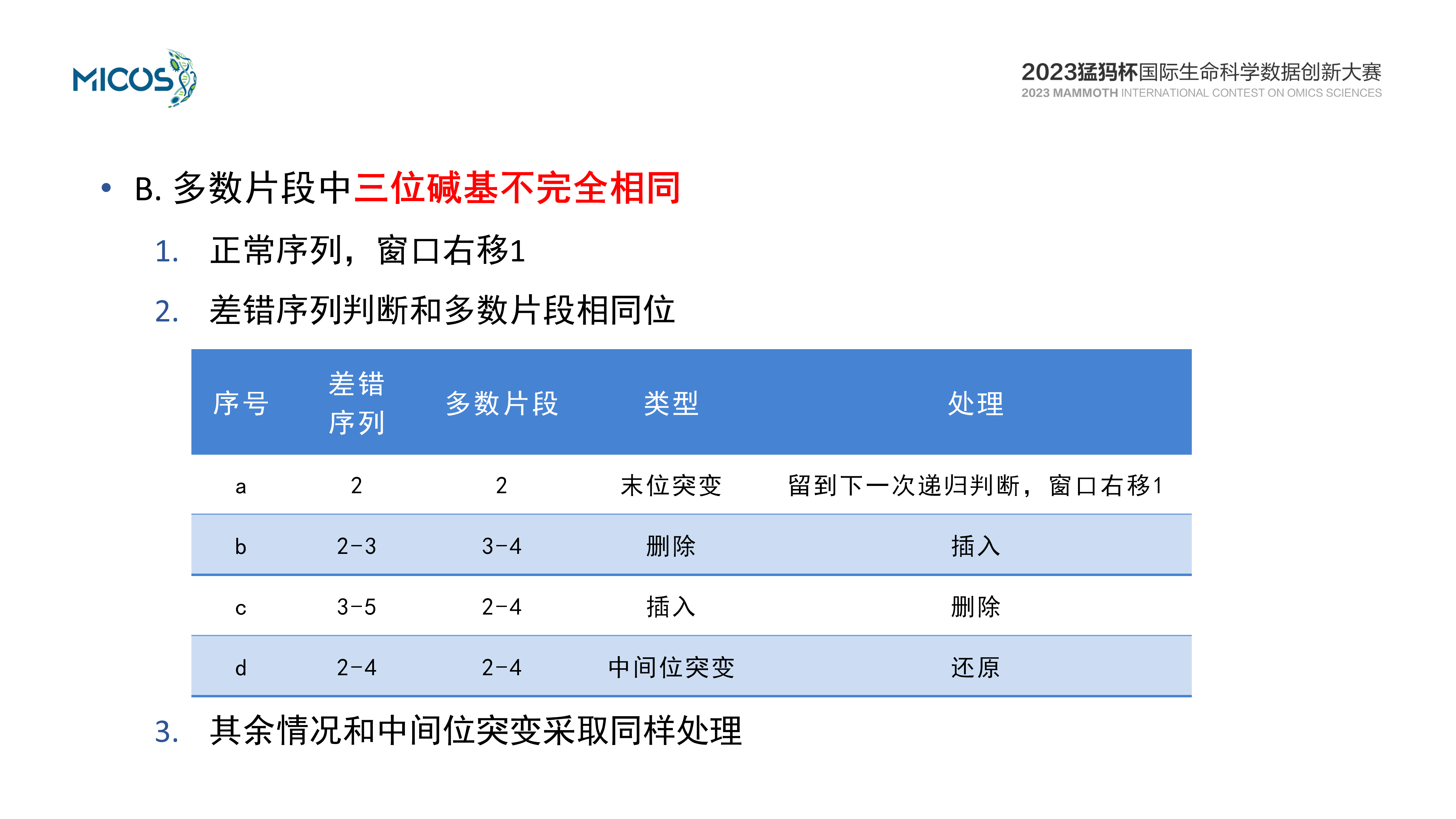

Figure 4b: Indel handling — Case B (non-homopolymer). Normal sequences shift by 1; indels are detected by cross-comparing 3–5 bases of the candidate against 2–4 bases of the consensus.

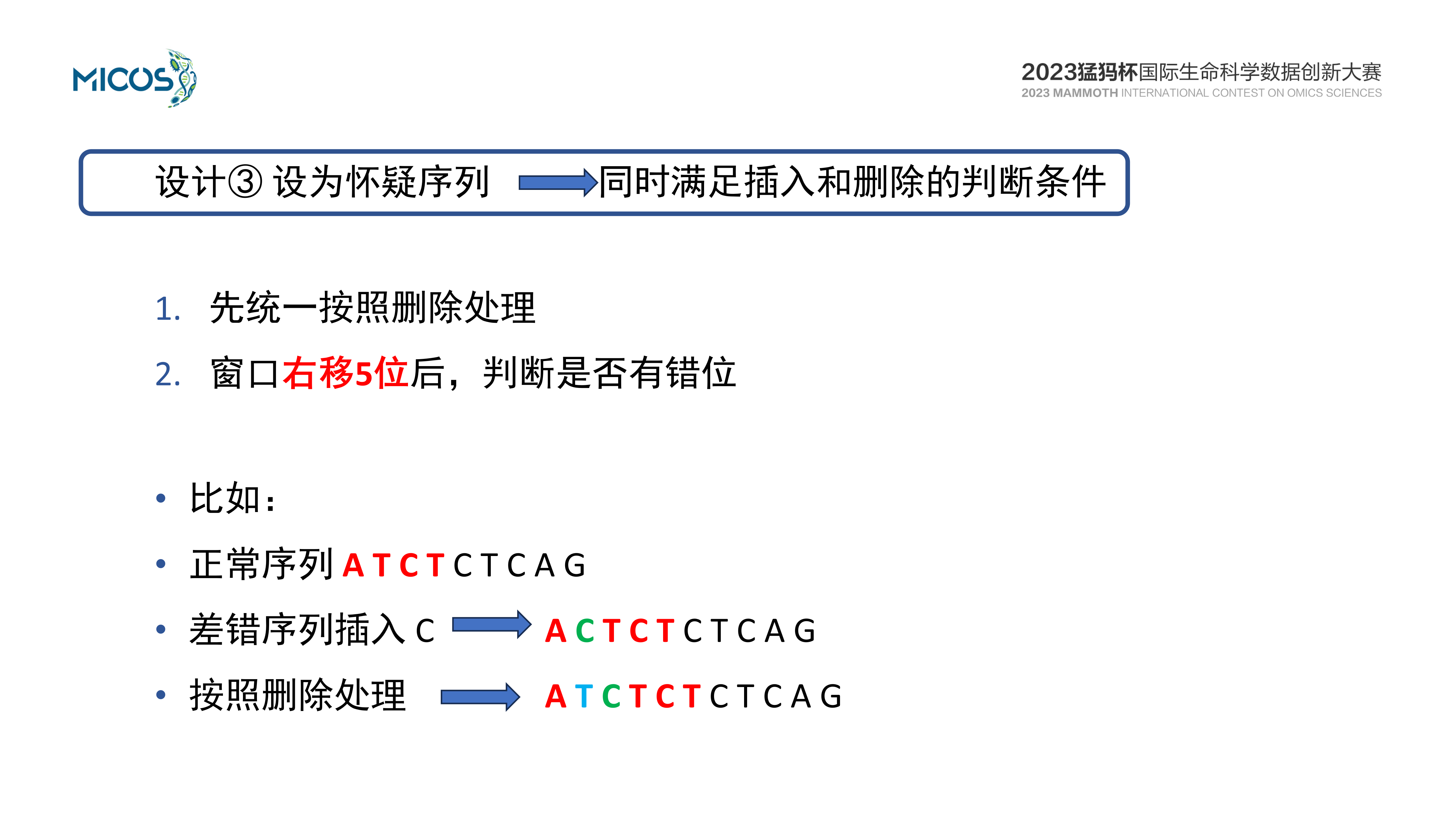

Ambiguity Resolution: When both insertion and deletion conditions are met simultaneously, we treat it as a deletion first, shift the window by 5 positions, compare the 2–4 bases of the normal fragment against positions 4–6 of the corrected sequence, and either accept or revert based on the match.

Figure 5: Ambiguity resolution. When both insertion and deletion conditions are met, we first treat it as a deletion, then compare the 2–4 bases of the normal fragment against positions 4–6 of the corrected sequence

Recursive Split Strategy: To mitigate local greedy failures in the middle of long sequences, we recursively split each sequence into two halves (with a 10-base overlap) and recover each half independently—one from the start, the other from the end. The overlapping region is used for consistency checking.

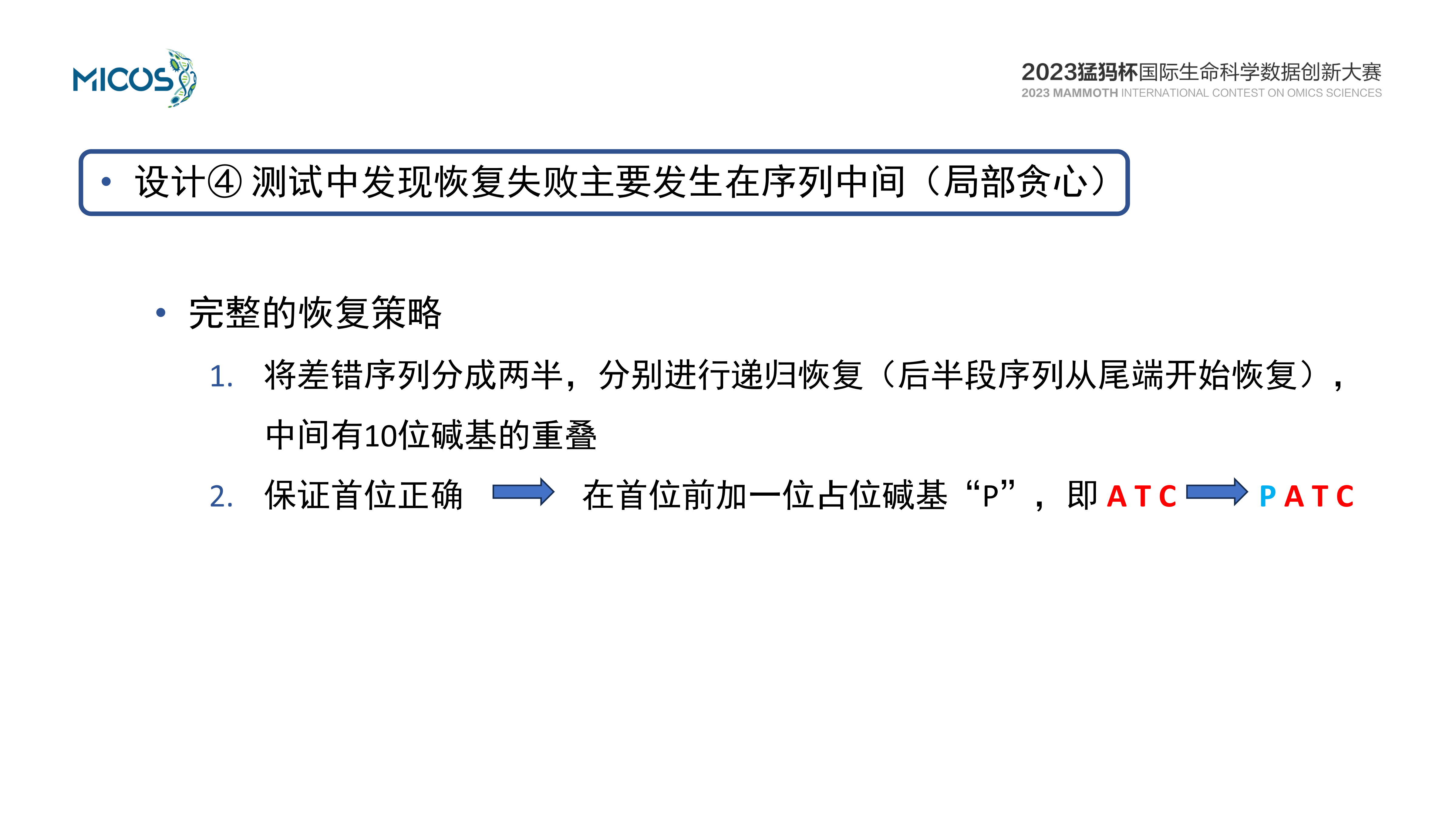

Figure 6: Recursive split strategy. Each sequence is divided into two halves with 10-base overlap; forward recovery on the first half, backward recovery on the second.

5. Experimental Results

5.1 Dataset & Setup

10,000 randomly generated sequences (length 159, GC ≈ 50%, max homopolymer ≤ 4), each replicated 7×. Errors injected via the official competition simulator. Hardware: single-core CPU.

5.2 Performance Metrics

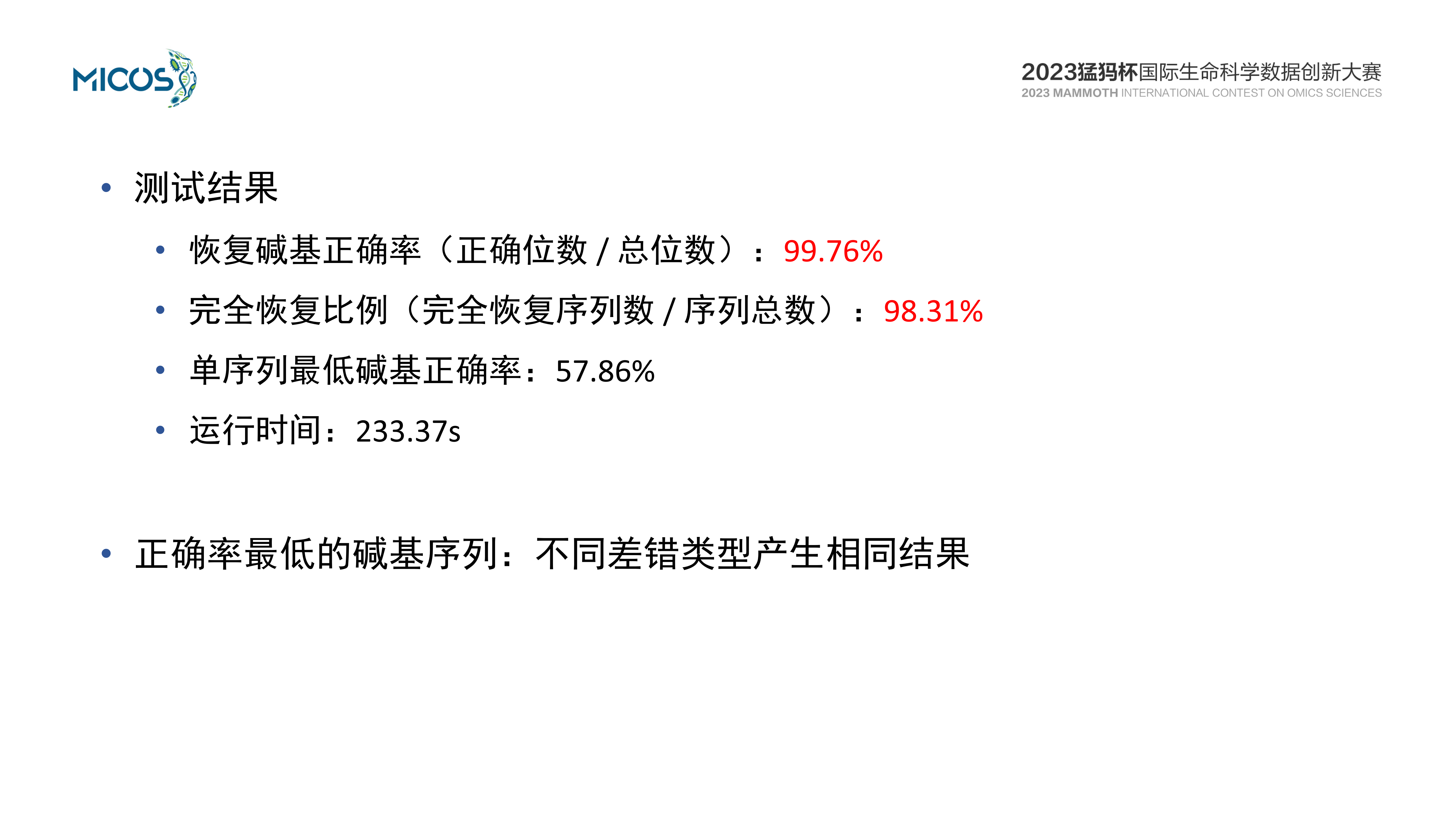

Figure 7: Key performance overview. Per-base accuracy, full-sequence recovery rate, and runtime breakdown.

5.3 Competition Benchmark (15× Redundancy)

Trap images contained fine-grained background details lost during aggressive compression—highlighting a current limitation.

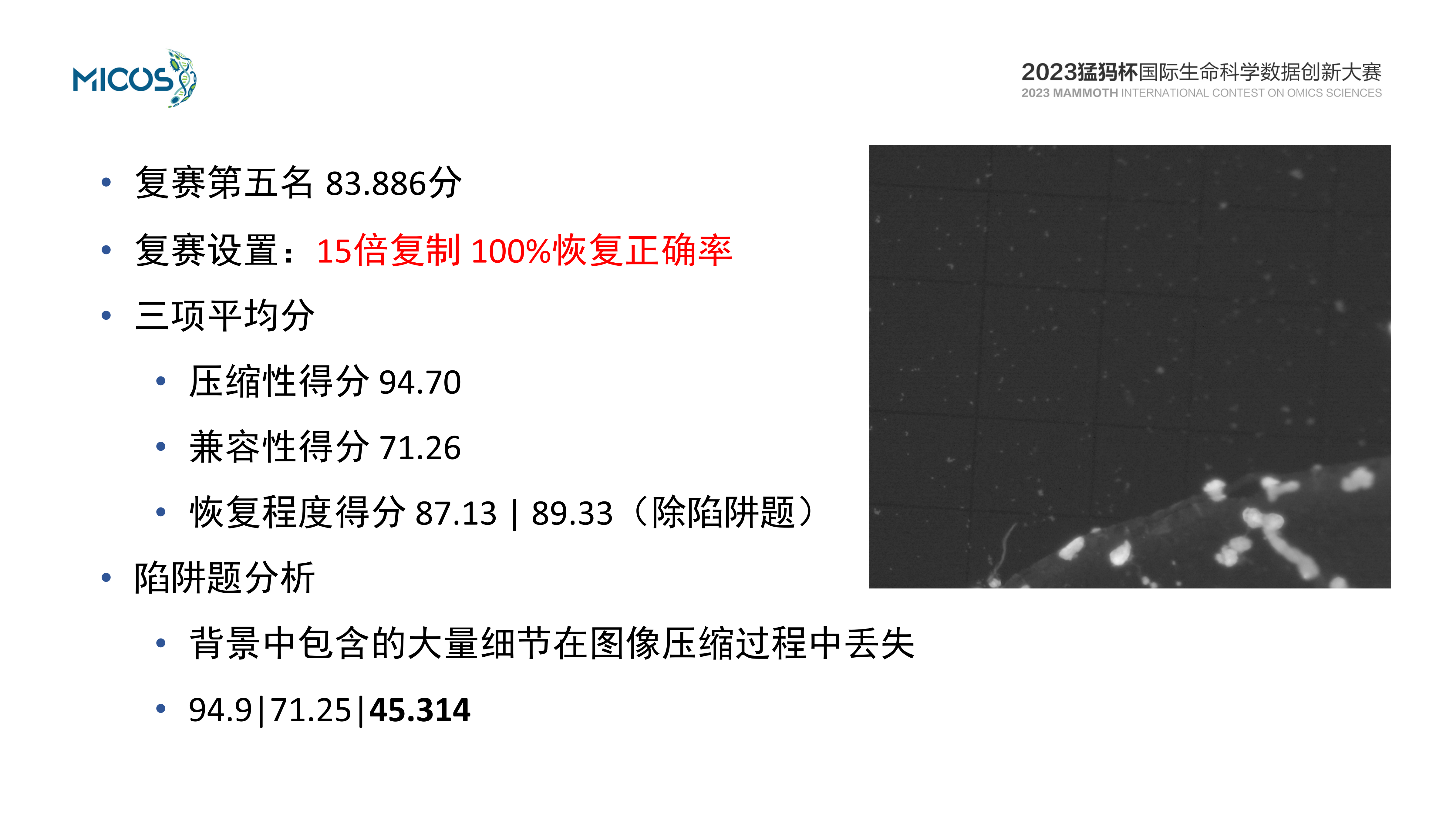

Figure 8: Competition benchmark scores across dimensions. Compression (94.70), compatibility (71.26), and recovery performance with and without trap images.

6. Innovation and Contributions

• Encoding-agnostic recovery: Compatible with any DNA encoding scheme—no custom error-correcting codes required.
• High robustness: 100% original-sequence recovery at 15× redundancy under diverse error types.
• Practical redundancy management: Resilient to partial DNA sample loss—realistic wet-lab scenario.
• Hybrid statistical–deterministic algorithm: Density-based clustering + deterministic voting outperforms purely probabilistic or rule-based methods.

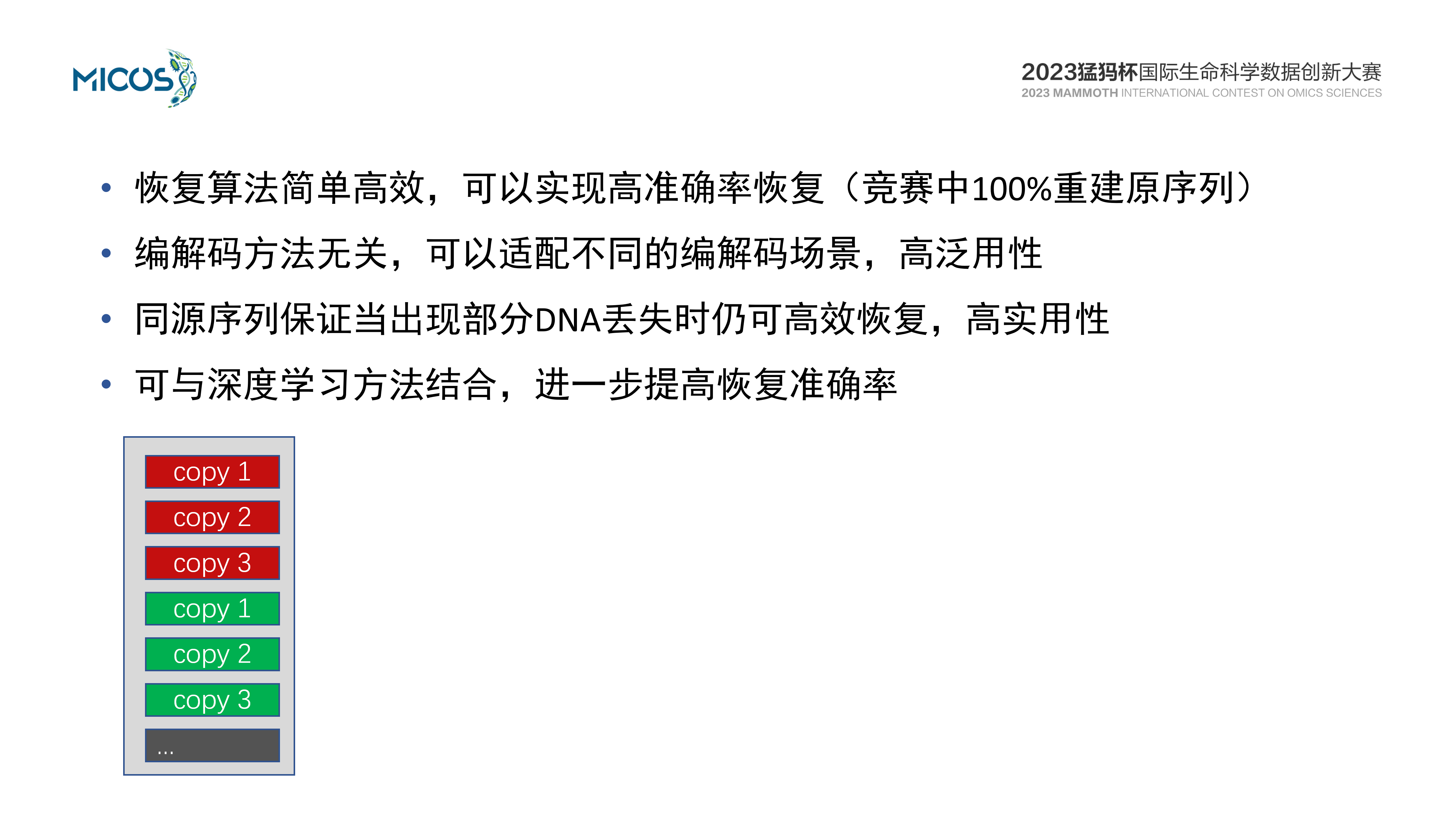

Figure 9: Summary of key innovations. Encoding-agnostic design, robustness to multiple error types, practical for partial DNA loss, and extensible with deep-learning components.

7. Limitations and Future Work

Trap image failure indicates a need for content-adaptive encoding that preserves perceptual saliency. Clustering is currently CPU-bound; GPU-accelerated distance computations will reduce runtime significantly. Extremely long homopolymer stretches (>10 bases) may require additional heuristics or trained models.

8. Conclusion

We present a complete DNA storage pipeline with a novel error-recovery framework based on homologous sequence redundancy and a sliding-window voting algorithm. The system achieves near-perfect reconstruction accuracy on benchmark datasets and is compatible with diverse encoding strategies, advancing DNA as a long-term digital storage medium.

Team: Baseline · Affiliation: Beihang University (School of Computer Science), Institute of Automation (CAS), Institute of Biophysics (CAS) · Date: Nov 01, 2023

Contributions: Donghao Yang (encoding algorithm, presentation & defense) · CAS collaborators (decoding algorithm, slides & visualization)
